ossimHdf5ProjectionFactory Class Reference

#include <ossimHdf5ProjectionFactory.h>

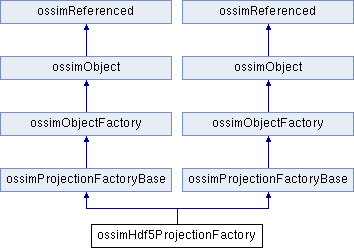

Inheritance diagram for ossimHdf5ProjectionFactory:

Public Member Functions
virtual ossimProjection *	createProjection (const ossimFilename &filename, ossim_uint32 entryIdx) const
	Takes a filename. More...
virtual ossimProjection *	createProjection (const ossimString &name) const
	Take a projection type name. More...
virtual ossimProjection *	createProjection (const ossimKeywordlist &kwl, const char *prefix=0) const
	Take a keywordlist. More...
virtual ossimObject *	createObject (const ossimString &typeName) const
virtual ossimObject *	createObject (const ossimKeywordlist &kwl, const char *prefix=0) const
virtual void	getTypeNameList (std::vector< ossimString > &typeList) const
void	addProjDataPath (const ossimString &projPath)
	Specifies which HDF5 internal paths to search through to locate geometry information. More...
virtual ossimProjection *	createProjection (const ossimFilename &filename, ossim_uint32 entryIdx) const
	Takes a filename. More...
virtual ossimProjection *	createProjection (const ossimString &name) const
	Take a projection type name. More...
virtual ossimProjection *	createProjection (const ossimKeywordlist &kwl, const char *prefix=0) const
	Take a keywordlist. More...
virtual ossimObject *	createObject (const ossimString &typeName) const
virtual ossimObject *	createObject (const ossimKeywordlist &kwl, const char *prefix=0) const
virtual void	getTypeNameList (std::vector< ossimString > &typeList) const
Public Member Functions inherited from ossimProjectionFactoryBase
virtual ossimProjection *	createProjection (ossimImageHandler *handler) const
Public Member Functions inherited from ossimObjectFactory
virtual	~ossimObjectFactory ()
Public Member Functions inherited from ossimObject
	ossimObject ()
virtual	~ossimObject ()
virtual ossimObject *	dup () const
virtual ossimString	getShortName () const
virtual ossimString	getLongName () const
virtual ossimString	getDescription () const
virtual ossimString	getClassName () const
virtual RTTItypeid	getType () const
virtual bool	canCastTo (ossimObject *obj) const
virtual bool	canCastTo (const RTTItypeid &id) const
virtual bool	canCastTo (const ossimString &parentClassName) const
virtual bool	saveState (ossimKeywordlist &kwl, const char *prefix=0) const
virtual bool	loadState (const ossimKeywordlist &kwl, const char *prefix=0)
virtual std::ostream &	print (std::ostream &out) const
	Generic print method. More...
virtual bool	isEqualTo (const ossimObject &obj, ossimCompareType compareType=OSSIM_COMPARE_FULL) const
virtual void	accept (ossimVisitor &visitor)
Public Member Functions inherited from ossimReferenced
	ossimReferenced ()
	ossimReferenced (const ossimReferenced &)
ossimReferenced &	operator= (const ossimReferenced &)
void	ref () const
	increment the reference count by one, indicating that this object has another pointer which is referencing it. More...
void	unref () const
	decrement the reference count by one, indicating that a pointer to this object is referencing it. More...
void	unref_nodelete () const
	decrement the reference count by one, indicating that a pointer to this object is referencing it. More...
int	referenceCount () const

Static Public Member Functions
static ossimHdf5ProjectionFactory *	instance ()
static ossimHdf5ProjectionFactory *	instance ()

Protected Member Functions
	ossimHdf5ProjectionFactory ()
	ossimHdf5ProjectionFactory ()
Protected Member Functions inherited from ossimProjectionFactoryBase
ossimProjection *	createProjectionFromGeometryFile (const ossimFilename &imageFile, ossim_uint32 entryIdx) const
	This method takes the filename and tries to find an external ".geom" file. More...
Protected Member Functions inherited from ossimReferenced
virtual	~ossimReferenced ()

Protected Attributes
std::vector< ossimString >	m_projDataPaths

Detailed Description

Definition at line 14 of file ossimHdf5ProjectionFactory.h.

Constructor & Destructor Documentation

ossimHdf5ProjectionFactory() [1/2]

ossimHdf5ProjectionFactory::ossimHdf5ProjectionFactory ( )

protected

Definition at line 89 of file ossimHdf5ProjectionFactory.cpp.

Referenced by instance().

{
}

ossimHdf5ProjectionFactory() [2/2]

ossimHdf5ProjectionFactory::ossimHdf5ProjectionFactory ( )

protected

Member Function Documentation

addProjDataPath()

void ossimHdf5ProjectionFactory::addProjDataPath ( const ossimString &  projPath )

inline

Specifies which HDF5 internal paths to search through to locate geometry information.

This can be either explicit dataset names, or group names containing known datasets, such as "Latitude" and "longitude". The plugins depending on HDF5 should register their geometry groups here in the same order as image entries.

Definition at line 53 of file ossimHdf5ProjectionFactory.h.

{ m_projDataPaths.push_back(projPath); }

createObject() [1/4]

ossimObject * ossimHdf5ProjectionFactory::createObject ( const ossimString &  typeName ) const

virtual

Creates an object given a type name.

Implements ossimObjectFactory.

Definition at line 72 of file ossimHdf5ProjectionFactory.cpp.

References createProjection().

{
   return createProjection(typeName);
}

createObject() [2/4]

virtual ossimObject* ossimHdf5ProjectionFactory::createObject ( const ossimString &  typeName ) const

virtual

Creates an object given a type name.

Implements ossimObjectFactory.

createObject() [3/4]

ossimObject * ossimHdf5ProjectionFactory::createObject ( const ossimKeywordlist &  kwl, const char *  prefix = 0  ) const

virtual

Creates and object given a keyword list.

Implements ossimObjectFactory.

Definition at line 78 of file ossimHdf5ProjectionFactory.cpp.

References createProjection().

{
   return createProjection(kwl, prefix);
}

createObject() [4/4]

virtual ossimObject* ossimHdf5ProjectionFactory::createObject ( const ossimKeywordlist &  kwl, const char *  prefix = 0  ) const

virtual

Creates and object given a keyword list.

Implements ossimObjectFactory.

createProjection() [1/6]

ossimProjection * ossimHdf5ProjectionFactory::createProjection ( const ossimFilename &  filename, ossim_uint32  entryIdx  ) const

virtual

Takes a filename.

This filename can be an image file or it can also be a ossim .geom file. It could be other forms of geom files as well. The factories job will be to determine what parser to use and return a projection if successful.

Implements ossimProjectionFactoryBase.

Definition at line 23 of file ossimHdf5ProjectionFactory.cpp.

References ossimProjectionFactoryBase::createProjectionFromGeometryFile(), ossimRefPtr< T >::get(), ossimHdf5GridModel::initialize(), ossimHdf5::open(), ossimRefPtr< T >::release(), and ossimRefPtr< T >::valid().

Referenced by createObject().

{
   // Try external geom file first:
   ossimRefPtr<ossimProjection> projection = createProjectionFromGeometryFile(filename, entryIdx);
   if (!projection.valid())
   {
      // Try internal grid model. This may be specific to VIIRS. In any case, it is not very
      // robust as this model simply looks for "Latitude" and "Longitude" dataset names, ignoring
      // multiple entries with potentially different geometries for each. Eventually should
      // provide for the specification of specific dataset names or at least path to parent group.
      // This is not trivial with only an entry index available. (OLK 08/16)
      ossimRefPtr<ossimHdf5> hdf5 = new ossimHdf5;
      if (hdf5->open(filename))
      {
         ossimRefPtr<ossimHdf5GridModel> hdf5_grid = new ossimHdf5GridModel;
         hdf5_grid->initialize(hdf5.get());
      }
   }

   // Must release or pointer will self destruct when it goes out of scope.
   return projection.release();
}

createProjection() [2/6]

virtual ossimProjection* ossimHdf5ProjectionFactory::createProjection ( const ossimFilename &  filename, ossim_uint32  entryIdx  ) const

virtual

Takes a filename.

This filename can be an image file or it can also be a ossim .geom file. It could be other forms of geom files as well. The factories job will be to determine what parser to use and return a projection if successful.

Implements ossimProjectionFactoryBase.

createProjection() [3/6]

virtual ossimProjection* ossimHdf5ProjectionFactory::createProjection ( const ossimString &  name ) const

virtual

Take a projection type name.

Implements ossimProjectionFactoryBase.

createProjection() [4/6]

ossimProjection * ossimHdf5ProjectionFactory::createProjection ( const ossimString &  name ) const

virtual

Take a projection type name.

Implements ossimProjectionFactoryBase.

Definition at line 47 of file ossimHdf5ProjectionFactory.cpp.

{
   return 0;
}

createProjection() [5/6]

ossimProjection * ossimHdf5ProjectionFactory::createProjection ( const ossimKeywordlist &  kwl, const char *  prefix = 0  ) const

virtual

Take a keywordlist.

Implements ossimProjectionFactoryBase.

Definition at line 52 of file ossimHdf5ProjectionFactory.cpp.

References ossimKeywordlist::add(), ossimKeywordlist::find(), ossimProjection::loadState(), ossimRefPtr< T >::release(), and ossimKeywordNames::TYPE_KW.

{
   ossimRefPtr<ossimProjection> result;
   ossimString value = kwl.find(prefix, ossimKeywordNames::TYPE_KW);
   if ((value != "ossimHdf5GridModel") && (value != "ossimH5GridModel"))
      return 0;

   // The HDF5 grid model is just an implementation of the coarse grid model, but the geom file
   // is purely the latter, so trick the KWL to properly load an OCG model:
   ossimKeywordlist new_kwl (kwl);
   new_kwl.add(prefix, ossimKeywordNames::TYPE_KW, "ossimCoarseGridModel", true);

   result = new ossimHdf5GridModel;
   if( !result->loadState(new_kwl, prefix) )
      result = 0;

   return result.release();
}

createProjection() [6/6]

virtual ossimProjection* ossimHdf5ProjectionFactory::createProjection ( const ossimKeywordlist &  kwl, const char *  prefix = 0  ) const

virtual

Take a keywordlist.

Implements ossimProjectionFactoryBase.

getTypeNameList() [1/2]

void ossimHdf5ProjectionFactory::getTypeNameList ( std::vector< ossimString > &  typeList ) const

virtual

This should return the type name of all objects in all factories. This is the name used to construct the objects dynamially and this name must be unique.

Implements ossimObjectFactory.

Definition at line 84 of file ossimHdf5ProjectionFactory.cpp.

{
   typeList.push_back(ossimString("ossimHdf5GridModel"));
}

getTypeNameList() [2/2]

virtual void ossimHdf5ProjectionFactory::getTypeNameList ( std::vector< ossimString > &  typeList ) const

virtual

This should return the type name of all objects in all factories. This is the name used to construct the objects dynamially and this name must be unique.

Implements ossimObjectFactory.

instance() [1/2]

ossimHdf5ProjectionFactory * ossimHdf5ProjectionFactory::instance ( )

static

Definition at line 15 of file ossimHdf5ProjectionFactory.cpp.

References ossimHdf5ProjectionFactory().

Referenced by ossimProjectionFactoryRegistry::initializeDefaults(), ossimSharedLibraryFinalize(), and ossimSharedLibraryInitialize().

{
   static ossimHdf5ProjectionFactory* factoryInstance =
      new ossimHdf5ProjectionFactory();

   return factoryInstance;
}

instance() [2/2]

static ossimHdf5ProjectionFactory* ossimHdf5ProjectionFactory::instance ( )

static

Member Data Documentation

m_projDataPaths

std::vector<ossimString> ossimHdf5ProjectionFactory::m_projDataPaths

protected

Definition at line 59 of file ossimHdf5ProjectionFactory.h.

---

The documentation for this class was generated from the following files:

• ossimHdf5ProjectionFactory.h
• ossimH5ProjectionFactory.h
• ossimHdf5ProjectionFactory.cpp
• ossimH5ProjectionFactory.cpp
