ossimNitfGeoPositioningTag Class Reference

#include <ossimNitfGeoPositioningTag.h>

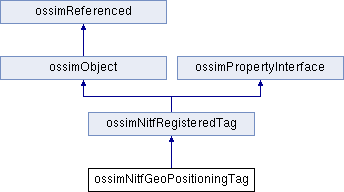

Inheritance diagram for ossimNitfGeoPositioningTag:

Public Member Functions
	ossimNitfGeoPositioningTag ()
virtual	~ossimNitfGeoPositioningTag ()
virtual void	parseStream (std::istream &in)
virtual void	writeStream (std::ostream &out)
virtual void	clearFields ()
virtual std::ostream &	print (std::ostream &out, const std::string &prefix=std::string()) const
	Print method that outputs a key/value type format adding prefix to keys. More...
Public Member Functions inherited from ossimNitfRegisteredTag
	ossimNitfRegisteredTag ()
	default constructor More...
	ossimNitfRegisteredTag (const std::string &tagName, ossim_uint32 tagLength)
	Constructor that takes name and size. More...
virtual	~ossimNitfRegisteredTag ()
	destructor More...
virtual std::string	getRegisterTagName () const
	This will return the name of the registered tag for this user defined header. More...
virtual const std::string &	getTagName () const
	This will return the name of the registered tag for this user defined header. More...
virtual void	setTagName (const std::string &tagName)
virtual ossim_uint32	getSizeInBytes () const
	Returns the length in bytes of the tag from the CEL or REL field. More...
virtual ossim_uint32	getTagLength () const
	Returns the length in bytes of the tag from the CEL or REL field. More...
virtual void	setTagLength (ossim_uint32 length)
	Set the tag length. More...
virtual void	parseStream (ossim::istream &in)=0
	This will allow the user defined data to parse the stream. More...
virtual void	writeStream (ossim::ostream &out)=0
virtual void	setProperty (ossimRefPtr< ossimProperty > property)
virtual ossimRefPtr< ossimProperty >	getProperty (const ossimString &name) const
virtual void	getPropertyNames (std::vector< ossimString > &propertyNames) const
virtual void	getMetadata (ossimKeywordlist &kwl, const char *prefix=0) const
	Default interface to populate keyword list with metadata. More...
virtual bool	saveState (ossimKeywordlist &kwl, const ossimString &prefix) const
Public Member Functions inherited from ossimObject
	ossimObject ()
virtual	~ossimObject ()
virtual ossimObject *	dup () const
virtual ossimString	getShortName () const
virtual ossimString	getLongName () const
virtual ossimString	getDescription () const
virtual ossimString	getClassName () const
virtual RTTItypeid	getType () const
virtual bool	canCastTo (ossimObject *obj) const
virtual bool	canCastTo (const RTTItypeid &id) const
virtual bool	canCastTo (const ossimString &parentClassName) const
virtual bool	saveState (ossimKeywordlist &kwl, const char *prefix=0) const
virtual bool	loadState (const ossimKeywordlist &kwl, const char *prefix=0)
virtual std::ostream &	print (std::ostream &out) const
	Generic print method. More...
virtual bool	isEqualTo (const ossimObject &obj, ossimCompareType compareType=OSSIM_COMPARE_FULL) const
virtual void	accept (ossimVisitor &visitor)
Public Member Functions inherited from ossimReferenced
	ossimReferenced ()
	ossimReferenced (const ossimReferenced &)
ossimReferenced &	operator= (const ossimReferenced &)
void	ref () const
	increment the reference count by one, indicating that this object has another pointer which is referencing it. More...
void	unref () const
	decrement the reference count by one, indicating that a pointer to this object is referencing it. More...
void	unref_nodelete () const
	decrement the reference count by one, indicating that a pointer to this object is referencing it. More...
int	referenceCount () const
Public Member Functions inherited from ossimPropertyInterface
	ossimPropertyInterface ()
virtual	~ossimPropertyInterface ()
virtual void	setProperty (const ossimString &name, const ossimString &value)
virtual ossimString	getPropertyValueAsString (const ossimString &name) const
void	getPropertyList (std::vector< ossimRefPtr< ossimProperty > > &propertyList) const
void	setProperties (std::vector< ossimRefPtr< ossimProperty > > &propertyList)

Protected Attributes
char	theType [4]
	FIELD: TYP. More...
char	theCoordinateUnits [4]
	FIELD: UNI. More...
char	theGeodeticDatumName [81]
	FIELD: DAG. More...
char	theGeodeticDatumCode [5]
	FIELD: DCD. More...
char	theEllipsoidName [81]
	FIELD: ELL. More...
char	theEllipsoidCode [4]
	FIELD: ELC. More...
char	theVerticalDatumReference [81]
	FIELD: DVR. More...
char	theVerticalReferenceCode [5]
	FIELD: VDCDVR. More...
char	theSoundingDatumName [81]
	FIELD: SDA. More...
char	theSoundingDatumCode [5]
	FIELD: VDCSDA. More...
char	theZFalseOrigin [16]
	FIELD ZOR. More...
char	theGridCode [4]
	FIELD: GRD. More...
char	theGridDescription [81]
	FIELD: GRN. More...
char	theGridZoneNumber [5]
	FIELD: ZNA. More...
Protected Attributes inherited from ossimNitfRegisteredTag
std::string	m_tagName
ossim_uint32	m_tagLength

Additional Inherited Members
Protected Member Functions inherited from ossimReferenced
virtual	~ossimReferenced ()

Detailed Description

Definition at line 21 of file ossimNitfGeoPositioningTag.h.

Constructor & Destructor Documentation

ossimNitfGeoPositioningTag()

ossimNitfGeoPositioningTag::ossimNitfGeoPositioningTag

(

)

Definition at line 22 of file ossimNitfGeoPositioningTag.cpp.

References clearFields().

   : ossimNitfRegisteredTag(std::string("GEOPSB"),  443)
{
   clearFields();
}

~ossimNitfGeoPositioningTag()

ossimNitfGeoPositioningTag::~ossimNitfGeoPositioningTag ( )

virtual

Definition at line 28 of file ossimNitfGeoPositioningTag.cpp.

{
}

Member Function Documentation

clearFields()

void ossimNitfGeoPositioningTag::clearFields ( )

virtual

Definition at line 70 of file ossimNitfGeoPositioningTag.cpp.

References theCoordinateUnits, theEllipsoidCode, theEllipsoidName, theGeodeticDatumCode, theGeodeticDatumName, theGridCode, theGridDescription, theGridZoneNumber, theSoundingDatumCode, theSoundingDatumName, theType, theVerticalDatumReference, theVerticalReferenceCode, and theZFalseOrigin.

Referenced by ossimNitfGeoPositioningTag(), and parseStream().

{
   memset(theType, ' ', 3);
   memset(theCoordinateUnits, ' ', 3);
   memset(theGeodeticDatumName, ' ', 80);
   memset(theGeodeticDatumCode, ' ', 4);
   memset(theEllipsoidName, ' ', 80);
   memset(theEllipsoidCode, ' ', 3);
   memset(theVerticalDatumReference, ' ', 80);
   memset(theVerticalReferenceCode, ' ', 4);
   memset(theSoundingDatumName, ' ', 80);
   memset(theSoundingDatumCode, ' ', 4);
   memset(theZFalseOrigin, '0', 15);
   memset(theGridCode, ' ', 3);
   memset(theGridDescription, ' ', 80);
   memset(theGridZoneNumber, '0',  4);

   memcpy(theType, "MAP", 3);
   memcpy(theCoordinateUnits, "M  ", 3);
   memcpy(theGeodeticDatumName, "World Geodetic System 1984", 26);
   memcpy(theGeodeticDatumCode, "WGE", 3);
   memcpy(theEllipsoidName, "World Geodetic System 1984", 26);
   memcpy(theEllipsoidCode, "WE", 2);
   memcpy(theVerticalDatumReference, "Geodetic", 8);
   memcpy(theVerticalReferenceCode, "GEOD", 4);
   memcpy(theSoundingDatumName, "Mean Sea", 8);
   memcpy(theSoundingDatumCode, "MSL", 3);

   theType[3]                    = '\0';
   theCoordinateUnits[3]         = '\0';
   theGeodeticDatumName[80]      = '\0';
   theGeodeticDatumCode[4]       = '\0';
   theEllipsoidName[80]          = '\0';
   theEllipsoidCode[3]           = '\0';
   theVerticalDatumReference[80] = '\0';
   theVerticalReferenceCode[4]   = '\0';
   theSoundingDatumName[80]      = '\0';
   theSoundingDatumCode[4]       = '\0';
   theZFalseOrigin[15]           = '\0';
   theGridCode[3]                = '\0';
   theGridDescription[80]        = '\0';
   theGridZoneNumber[4]          = '\0';

}

parseStream()

void ossimNitfGeoPositioningTag::parseStream ( std::istream &  in )

virtual

Definition at line 32 of file ossimNitfGeoPositioningTag.cpp.

References clearFields(), theCoordinateUnits, theEllipsoidCode, theEllipsoidName, theGeodeticDatumCode, theGeodeticDatumName, theGridCode, theGridDescription, theGridZoneNumber, theSoundingDatumCode, theSoundingDatumName, theType, theVerticalDatumReference, theVerticalReferenceCode, and theZFalseOrigin.

{
   clearFields();

   in.read(theType, 3);
   in.read(theCoordinateUnits, 3);
   in.read(theGeodeticDatumName, 80);
   in.read(theGeodeticDatumCode, 4);
   in.read(theEllipsoidName, 80);
   in.read(theEllipsoidCode, 3);
   in.read(theVerticalDatumReference, 80);
   in.read(theVerticalReferenceCode, 4);
   in.read(theSoundingDatumName, 80);
   in.read(theSoundingDatumCode, 4);
   in.read(theZFalseOrigin, 15);
   in.read(theGridCode, 3);
   in.read(theGridDescription, 80);
   in.read(theGridZoneNumber, 4);
}

print()

std::ostream & ossimNitfGeoPositioningTag::print ( std::ostream &  out, const std::string &  prefix = std::string()  ) const

virtual

Print method that outputs a key/value type format adding prefix to keys.

Parameters

out	Stream to output to.
prefix	Prefix added to key like "image0.";

Reimplemented from ossimNitfRegisteredTag.

Definition at line 115 of file ossimNitfGeoPositioningTag.cpp.

References ossimNitfRegisteredTag::getTagLength(), ossimNitfRegisteredTag::getTagName(), theCoordinateUnits, theEllipsoidCode, theEllipsoidName, theGeodeticDatumCode, theGeodeticDatumName, theGridCode, theGridDescription, theGridZoneNumber, theSoundingDatumCode, theSoundingDatumName, theType, theVerticalDatumReference, theVerticalReferenceCode, and theZFalseOrigin.

{
   std::string pfx = prefix;
   pfx += getTagName();
   pfx += ".";

   out << setiosflags(std::ios::left)
       << pfx << std::setw(24) << "CETAG:"
       << getTagName() << "\n"
       << pfx << std::setw(24) << "CEL:"   << getTagLength() << "\n"
       << pfx << std::setw(24) << "TYP:" << theType << "\n"
       << pfx << std::setw(24) << "UNI:" << theCoordinateUnits << "\n"
       << pfx << std::setw(24) << "DAG:" << theGeodeticDatumName << "\n"
       << pfx << std::setw(24) << "DCD:" << theGeodeticDatumCode << "\n"
       << pfx << std::setw(24) << "ELL:" << theEllipsoidName << "\n"
       << pfx << std::setw(24) << "ELC:" << theEllipsoidCode << "\n"
       << pfx << std::setw(24) << "DVR:" << theVerticalDatumReference << "\n"
       << pfx << std::setw(24) << "VDCDVR:" << theVerticalReferenceCode << "\n"
       << pfx << std::setw(24) << "SDA:" << theSoundingDatumName << "\n"
       << pfx << std::setw(24) << "VDCSDA:" << theSoundingDatumCode << "\n"
       << pfx << std::setw(24) << "ZOR:" << theZFalseOrigin << "\n"
       << pfx << std::setw(24) << "GRD:" << theGridCode << "\n"
       << pfx << std::setw(24) << "GRN:" << theGridDescription << "\n"
       << pfx << std::setw(24) << "ZNA:" << theGridZoneNumber << "\n";

   return out;
}

writeStream()

void ossimNitfGeoPositioningTag::writeStream ( std::ostream &  out )

virtual

Definition at line 52 of file ossimNitfGeoPositioningTag.cpp.

References theCoordinateUnits, theEllipsoidCode, theEllipsoidName, theGeodeticDatumCode, theGeodeticDatumName, theGridCode, theGridDescription, theGridZoneNumber, theSoundingDatumCode, theSoundingDatumName, theType, theVerticalDatumReference, theVerticalReferenceCode, and theZFalseOrigin.

{
   out.write(theType, 3);
   out.write(theCoordinateUnits, 3);
   out.write(theGeodeticDatumName, 80);
   out.write(theGeodeticDatumCode, 4);
   out.write(theEllipsoidName, 80);
   out.write(theEllipsoidCode, 3);
   out.write(theVerticalDatumReference, 80);
   out.write(theVerticalReferenceCode, 4);
   out.write(theSoundingDatumName, 80);
   out.write(theSoundingDatumCode, 4);
   out.write(theZFalseOrigin, 15);
   out.write(theGridCode, 3);
   out.write(theGridDescription, 80);
   out.write(theGridZoneNumber, 4);
}

Member Data Documentation

theCoordinateUnits

char ossimNitfGeoPositioningTag::theCoordinateUnits[4]

protected

FIELD: UNI.

required 3 byte field.

Coordinate Units This field shall contain the units of measure to which the Image Segment refers. Valid values are SEC (Decimal seconds of arc), DEG (Decimal degrees) and M (Metres). The value must be consistent with the coordinate system type. SEC and DEG are not allowed when the coordinate system type is MAP. M is not allowed when the coordinate system type is GEO. The PRJPS extension is expected when the value is M. The default value is M.

Definition at line 76 of file ossimNitfGeoPositioningTag.h.

Referenced by clearFields(), parseStream(), print(), and writeStream().

theEllipsoidCode

char ossimNitfGeoPositioningTag::theEllipsoidCode[4]

protected

FIELD: ELC.

required 3 byte field.

Ellipsoid Code This field shall contain the code of the ellipsoid to which the Image Segment refers. The default value is WE.

Definition at line 127 of file ossimNitfGeoPositioningTag.h.

Referenced by clearFields(), parseStream(), print(), and writeStream().

theEllipsoidName

char ossimNitfGeoPositioningTag::theEllipsoidName[81]

protected

FIELD: ELL.

required 80 byte field.

Ellipsoid Name

This field shall contain the name of the ellipsoid to which the Image Segment refers. The default value is World Geodetic System 1984.

Definition at line 115 of file ossimNitfGeoPositioningTag.h.

Referenced by clearFields(), parseStream(), print(), and writeStream().

theGeodeticDatumCode

char ossimNitfGeoPositioningTag::theGeodeticDatumCode[5]

protected

FIELD: DCD.

required 4 byte field.

Geodetic Datum Code This field shall contain the code of the geodetic datum to which the Image Segment refers. The default value is WGE.

Definition at line 102 of file ossimNitfGeoPositioningTag.h.

Referenced by clearFields(), parseStream(), print(), and writeStream().

theGeodeticDatumName

char ossimNitfGeoPositioningTag::theGeodeticDatumName[81]

protected

FIELD: DAG.

required 80 byte field.

Geodetic Datum Name

This field shall contain the name of the geodetic datum to which the Image Segment refers. The default value is World Geodetic System 1984.

Definition at line 91 of file ossimNitfGeoPositioningTag.h.

Referenced by clearFields(), parseStream(), print(), and writeStream().

theGridCode

char ossimNitfGeoPositioningTag::theGridCode[4]

protected

FIELD: GRD.

required 3 byte field.

Grid Code This field shall contain the identification code of the grid system to which the Image Segment refers, or BCS Spaces. The default value is BCS Spaces. 3BCS-A See Part 3-6 <R>

Definition at line 200 of file ossimNitfGeoPositioningTag.h.

Referenced by clearFields(), parseStream(), print(), and writeStream().

theGridDescription

char ossimNitfGeoPositioningTag::theGridDescription[81]

protected

FIELD: GRN.

required 80 byte field.

Grid Description If the GRD Field value is not BCS Spaces, this field can contain a text description of the grid system. The default value is BCS Spaces. 80 BCS-A <R>

Definition at line 211 of file ossimNitfGeoPositioningTag.h.

Referenced by clearFields(), parseStream(), print(), and writeStream().

theGridZoneNumber

char ossimNitfGeoPositioningTag::theGridZoneNumber[5]

protected

FIELD: ZNA.

required 4 byte field.

Grid Zone number This field shall contain the zone number when the GRD Field contains a significant grid code and the corresponding grid system comprises more than one zone. Defaulted to 0000 otherwise. 4 BCS-N integer See Part 3-6 R

Definition at line 223 of file ossimNitfGeoPositioningTag.h.

Referenced by clearFields(), parseStream(), print(), and writeStream().

theSoundingDatumCode

char ossimNitfGeoPositioningTag::theSoundingDatumCode[5]

protected

FIELD: VDCSDA.

required 4 byte field.

Code for Sounding Datum This field shall contain the code of the sounding datum to which the Image Segment refers, or BCS Spaces if no sounding appears in the Image Segment. The default valid code is MSL. 4BCS-A See Part 3-6 <R>

Definition at line 175 of file ossimNitfGeoPositioningTag.h.

Referenced by clearFields(), parseStream(), print(), and writeStream().

theSoundingDatumName

char ossimNitfGeoPositioningTag::theSoundingDatumName[81]

protected

FIELD: SDA.

required 80 byte field.

Sounding Datum Name This field shall contain the name of the sounding datum to which the Image Segment refers, or BCS Spaces i f no sounding appears in the Image Segment. The default value is Mean Sea.

Definition at line 163 of file ossimNitfGeoPositioningTag.h.

Referenced by clearFields(), parseStream(), print(), and writeStream().

theType

char ossimNitfGeoPositioningTag::theType[4]

protected

FIELD: TYP.

required 3 byte field.

Coordinate System Type

This field shall contain the type of coordinate system to which the Image Segment refers. Valid values are GEO for a geographic coordinate system (longitude & latitude), MAP for a cartographic (grid) coordinate system (easting & northing) and DIG for a geographic or cartographic coordinate system registered through location grids or registration points. See clause D1.2.2 for details. The default value is MAP.

Values: MAP, GEO or DIG

Definition at line 61 of file ossimNitfGeoPositioningTag.h.

Referenced by clearFields(), parseStream(), print(), and writeStream().

theVerticalDatumReference

char ossimNitfGeoPositioningTag::theVerticalDatumReference[81]

protected

FIELD: DVR.

required 80 byte field.

Vertical Datum Reference This field shall contain the name of the vertical datum reference to which the Image Segment refers, or BCS Spaces if no elevation value appears in the Image Segment. The default name is Geodetic.

Definition at line 138 of file ossimNitfGeoPositioningTag.h.

Referenced by clearFields(), parseStream(), print(), and writeStream().

theVerticalReferenceCode

char ossimNitfGeoPositioningTag::theVerticalReferenceCode[5]

protected

FIELD: VDCDVR.

required 4 byte field.

Code (Category) of Vertical Reference This field shall contain the code (or category) of the vertical reference to which the Image Segment refers, or BCS Spaces if no elevation value appears in the Image Segment. The default code is GEOD.

Definition at line 151 of file ossimNitfGeoPositioningTag.h.

Referenced by clearFields(), parseStream(), print(), and writeStream().

theZFalseOrigin

char ossimNitfGeoPositioningTag::theZFalseOrigin[16]

protected

FIELD ZOR.

required 15 byte field

Z values False Origin

This field shall contain the elevation and depth false origin for Z values to which the Image Segment refers. The default value is 000000000000000, which implies that there is no projection false Z origin. 15 BCS-N positive integer

Definition at line 189 of file ossimNitfGeoPositioningTag.h.

Referenced by clearFields(), parseStream(), print(), and writeStream().

---

The documentation for this class was generated from the following files:

• ossimNitfGeoPositioningTag.h
• ossimNitfGeoPositioningTag.cpp
