#include <ossimPolyconicProjection.h>

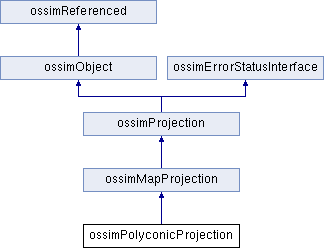

Inheritance diagram for ossimPolyconicProjection:

Public Member Functions
	ossimPolyconicProjection (const ossimEllipsoid &ellipsoid=ossimEllipsoid(), const ossimGpt &origin=ossimGpt())

	ossimPolyconicProjection (const ossimEllipsoid &ellipsoid, const ossimGpt &origin, const double falseEasting, const double falseNorthing)

	~ossimPolyconicProjection ()

virtual ossimObject *	dup () const

virtual ossimGpt	inverse (const ossimDpt &eastingNorthing) const
	Will take a point in meters and convert it to ground. More...

virtual ossimDpt	forward (const ossimGpt &latLon) const
	All map projections will convert the world coordinate to an easting northing (Meters). More...

virtual void	update ()

void	setFalseEasting (double falseEasting)

void	setFalseNorthing (double falseNorthing)

void	setFalseEastingNorthing (double falseEasting, double falseNorthing)

void	setDefaults ()

double	getFalseEasting () const

double	getFalseNorthing () const

virtual bool	saveState (ossimKeywordlist &kwl, const char *prefix=0) const

virtual bool	loadState (const ossimKeywordlist &kwl, const char *prefix=0)

Public Member Functions inherited from ossimMapProjection
	ossimMapProjection (const ossimEllipsoid &ellipsoid=ossimEllipsoid(), const ossimGpt &origin=ossimGpt())

	ossimMapProjection (const ossimMapProjection &src)

virtual ossimGpt	origin () const

virtual ossimDpt	worldToLineSample (const ossimGpt &worldPoint) const

virtual void	worldToLineSample (const ossimGpt &worldPoint, ossimDpt &lineSample) const

virtual ossimGpt	lineSampleToWorld (const ossimDpt &projectedPoint) const

virtual void	lineSampleToWorld (const ossimDpt &projectedPoint, ossimGpt &gpt) const

virtual void	lineSampleHeightToWorld (const ossimDpt &lineSampPt, const double &heightAboveEllipsoid, ossimGpt &worldPt) const
	This is the pure virtual that projects the image point to the given elevation above ellipsoid, thereby bypassing reference to a DEM. More...

virtual void	lineSampleToEastingNorthing (const ossimDpt &liineSample, ossimDpt &eastingNorthing) const

virtual void	eastingNorthingToLineSample (const ossimDpt &eastingNorthing, ossimDpt &lineSample) const

virtual void	eastingNorthingToWorld (const ossimDpt &eastingNorthing, ossimGpt &worldPt) const

virtual double	getStandardParallel1 () const
	Derived classes should implement as needed. More...

virtual double	getStandardParallel2 () const
	Derived classes should implement as needed. More...

virtual void	setPcsCode (ossim_uint32 pcsCode)

virtual ossim_uint32	getPcsCode () const
	Returns the EPSG PCS code or 32767 if the projection is a custom (non-EPSG) projection. More...

virtual ossimString	getProjectionName () const
	Returns the projection name. More...

virtual double	getA () const
	ACCESS METHODS: More...

virtual double	getB () const

virtual double	getF () const

virtual ossimDpt	getMetersPerPixel () const

virtual const ossimDpt &	getDecimalDegreesPerPixel () const
	Returns decimal degrees per pixel as an ossimDpt with "x" representing longitude and "y" representing latitude. More...

virtual const ossimDpt &	getUlEastingNorthing () const

virtual const ossimGpt &	getUlGpt () const

virtual const ossimDatum *	getDatum () const

const ossimEllipsoid &	getEllipsoid () const

const ossimGpt &	getOrigin () const

virtual bool	isGeographic () const

virtual void	applyScale (const ossimDpt &scale, bool recenterTiePoint)
	Applies scale to theDeltaLonPerPixel, theDeltaLatPerPixel and theMetersPerPixel data members (eg: theDeltaLonPerPixel *= scale.x). More...

virtual void	setEllipsoid (const ossimEllipsoid &ellipsoid)
	SET METHODS: More...

virtual void	setAB (double a, double b)

virtual void	setDatum (const ossimDatum *datum)
	Sets theDatum to datum. More...

virtual void	setOrigin (const ossimGpt &origin)
	Sets theOrigin to origin. More...

virtual void	setMetersPerPixel (const ossimDpt &gsd)

virtual void	setDecimalDegreesPerPixel (const ossimDpt &gsd)

virtual void	setUlTiePoints (const ossimGpt &gpt)

virtual void	setUlTiePoints (const ossimDpt &eastingNorthing)

virtual void	setUlEastingNorthing (const ossimDpt &ulEastingNorthing)

virtual void	setUlGpt (const ossimGpt &ulGpt)

virtual void	assign (const ossimProjection &aProjection)

virtual std::ostream &	print (std::ostream &out) const
	Prints data members to stream. More...

virtual bool	operator== (const ossimProjection &projection) const
	Compares this to arg projection and returns TRUE if the same. More...

virtual void	computeDegreesPerPixel ()
	Computes the approximate resolution in degrees/pixel. More...

virtual void	computeMetersPerPixel ()
	This will go from the ground point and give you an approximate meters per pixel. More...

void	setMatrix (double rotation, const ossimDpt &scale, const ossimDpt &translation)

void	setMatrixScale (const ossimDpt &scale)

void	setMatrixRotation (double rotation)

void	setMatrixTranslation (const ossimDpt &translation)

void	snapTiePointTo (ossim_float64 multiple, ossimUnitType unitType)
	Utility method to snap the tie point to some multiple. More...

void	snapTiePointToOrigin ()

void	setElevationLookupFlag (bool flag)

bool	getElevationLookupFlag () const

ossimUnitType	getModelTransformUnitType () const

void	setModelTransformUnitType (ossimUnitType unit)

bool	hasModelTransform () const

virtual bool	isAffectedByElevation () const
	Implementation of pure virtual ossimProjection::isAffectedByElevation method. More...

void	setProjectionUnits (ossimUnitType units)

ossimUnitType	getProjectionUnits () const
	OSSIM considers all map projection coordinates (including false eastings and northings) to be in meters. More...

virtual bool	isEqualTo (const ossimObject &obj, ossimCompareType compareType=OSSIM_COMPARE_FULL) const

Public Member Functions inherited from ossimProjection
	ossimProjection ()

virtual	~ossimProjection ()

virtual void	getRoundTripError (const ossimDpt &imagePoint, ossimDpt &errorResult) const

virtual void	getRoundTripError (const ossimGpt &groundPoint, ossimDpt &errorResult) const

virtual void	getGroundClipPoints (ossimGeoPolygon &gpts) const

virtual bool	operator!= (const ossimProjection &projection) const

Public Member Functions inherited from ossimObject
	ossimObject ()

virtual	~ossimObject ()

virtual ossimString	getShortName () const

virtual ossimString	getLongName () const

virtual ossimString	getDescription () const

virtual ossimString	getClassName () const

virtual RTTItypeid	getType () const

virtual bool	canCastTo (ossimObject *obj) const

virtual bool	canCastTo (const RTTItypeid &id) const

virtual bool	canCastTo (const ossimString &parentClassName) const

virtual void	accept (ossimVisitor &visitor)

Public Member Functions inherited from ossimReferenced
	ossimReferenced ()

	ossimReferenced (const ossimReferenced &)

ossimReferenced &	operator= (const ossimReferenced &)

void	ref () const
	increment the reference count by one, indicating that this object has another pointer which is referencing it. More...

void	unref () const
	decrement the reference count by one, indicating that a pointer to this object is referencing it. More...

void	unref_nodelete () const
	decrement the reference count by one, indicating that a pointer to this object is referencing it. More...

int	referenceCount () const

Public Member Functions inherited from ossimErrorStatusInterface
	ossimErrorStatusInterface ()

virtual	~ossimErrorStatusInterface ()

virtual ossimErrorCode	getErrorStatus () const

virtual ossimString	getErrorStatusString () const

virtual void	setErrorStatus (ossimErrorCode error_status) const

virtual void	setErrorStatus () const

virtual void	clearErrorStatus () const

bool	hasError () const

Private Member Functions
long	Set_Polyconic_Parameters (double a, double f, double Origin_Latitude, double Central_Meridian, double False_Easting, double False_Northing)

void	Get_Polyconic_Parameters (double a, double f, double Origin_Latitude, double Central_Meridian, double False_Easting, double False_Northing) const

long	Convert_Geodetic_To_Polyconic (double Latitude, double Longitude, double Easting, double Northing) const

long	Convert_Polyconic_To_Geodetic (double Easting, double Northing, double Latitude, double Longitude) const

Private Attributes
double	Poly_a

double	Poly_f

double	es2

double	es4

double	es6

double	M0

double	c0

double	c1

double	c2

double	c3

double	Poly_Origin_Lat

double	Poly_Origin_Long

double	Poly_False_Northing

double	Poly_False_Easting

double	Poly_Max_Easting

double	Poly_Max_Northing

double	Poly_Min_Easting

double	Poly_Min_Northing

Additional Inherited Members
Protected Member Functions inherited from ossimMapProjection
virtual	~ossimMapProjection ()

void	updateFromTransform ()

Protected Member Functions inherited from ossimReferenced
virtual	~ossimReferenced ()

Protected Attributes inherited from ossimMapProjection
ossimEllipsoid	theEllipsoid
	This method verifies that the projection parameters match the current pcs code. More...

ossimGpt	theOrigin

const ossimDatum *	theDatum
	This is only set if we want to have built in datum shifting. More...

ossimDpt	theMetersPerPixel
	Holds the number of meters per pixel. More...

ossimDpt	theDegreesPerPixel
	Hold the decimal degrees per pixel. More...

ossimGpt	theUlGpt
	Hold tie point in decimal degrees. More...

ossimDpt	theUlEastingNorthing
	Hold tie point as easting northing. More...

ossimDpt	theFalseEastingNorthing
	Hold the false easting northing. More...

ossim_uint32	thePcsCode
	Projection Coordinate System(PCS) code. More...

bool	theElevationLookupFlag

ossimMatrix4x4	theModelTransform

ossimMatrix4x4	theInverseModelTransform

ossimUnitType	theModelTransformUnitType

ossimUnitType	theProjectionUnits
	Linear units of the projection as indicated in the projection's specification: More...

Protected Attributes inherited from ossimErrorStatusInterface
ossimErrorCode	theErrorStatus

Detailed Description

Definition at line 18 of file ossimPolyconicProjection.h.

Constructor & Destructor Documentation

◆ ossimPolyconicProjection() [1/2]

ossimPolyconicProjection::ossimPolyconicProjection	(	const ossimEllipsoid &	ellipsoid = `ossimEllipsoid()`,
		const ossimGpt &	origin = `ossimGpt()`
	)

Definition at line 46 of file ossimPolyconicProjection.cpp.

References setDefaults(), and update().

    :ossimMapProjection(ellipsoid, origin)
 {
    setDefaults();
    update();
 }

◆ ossimPolyconicProjection() [2/2]

ossimPolyconicProjection::ossimPolyconicProjection	(	const ossimEllipsoid &	ellipsoid,
		const ossimGpt &	origin,
		const double	falseEasting,
		const double	falseNorthing
	)

Definition at line 54 of file ossimPolyconicProjection.cpp.

References Poly_False_Easting, Poly_False_Northing, Poly_Max_Easting, Poly_Max_Northing, Poly_Min_Easting, Poly_Min_Northing, and update().

    :ossimMapProjection(ellipsoid, origin)
 {
    Poly_False_Easting  = falseEasting;
    Poly_False_Northing = falseNorthing;
    Poly_Max_Easting    = 20037509.0;
    Poly_Max_Northing   = 15348215.0;
    Poly_Min_Easting    = -20037509.0;
    Poly_Min_Northing   = -15348215.0;

    update();
 }

◆ ~ossimPolyconicProjection()

ossimPolyconicProjection::~ossimPolyconicProjection ( )

inline

Definition at line 27 of file ossimPolyconicProjection.h.

27 {}

Member Function Documentation

◆ Convert_Geodetic_To_Polyconic()

long ossimPolyconicProjection::Convert_Geodetic_To_Polyconic	(	double	Latitude,
		double	Longitude,
		double *	Easting,
		double *	Northing
	)		const

private

The function Convert_Geodetic_To_Polyconic converts geodetic (latitude and longitude) coordinates to Polyconic projection easting, and northing coordinates, according to the current ellipsoid and Polyconic projection parameters. If any errors occur, the error code(s) are returned by the function, otherwise POLY_NO_ERROR is returned.

Latitude : Latitude (phi) in radians (input) Longitude : Longitude (lambda) in radians (input) Easting : Easting (X) in meters (output) Northing : Northing (Y) in meters (output)

Definition at line 319 of file ossimPolyconicProjection.cpp.

References c0, c1, c2, c3, es2, M0, M_PI, Poly_a, POLY_COEFF_TIMES_SIN, Poly_False_Easting, Poly_False_Northing, POLY_LON_WARNING, POLY_M, POLY_NO_ERROR, and Poly_Origin_Long.

Referenced by forward(), and Set_Polyconic_Parameters().

 { /* BEGIN Convert_Geodetic_To_Polyconic */
 /*
  * The function Convert_Geodetic_To_Polyconic converts geodetic (latitude and
  * longitude) coordinates to Polyconic projection (easting and northing)
  * coordinates, according to the current ellipsoid and Polyconic projection
  * parameters.  If any errors occur, the error code(s) are returned by the
  * function, otherwise POLY_NO_ERROR is returned.
  *
  *    Latitude          : Latitude (phi) in radians           (input)
  *    Longitude         : Longitude (lambda) in radians       (input)
  *    Easting           : Easting (X) in meters               (output)
  *    Northing          : Northing (Y) in meters              (output)
  */

   double slat = sin(Latitude);
   double lat, sin2lat, sin4lat, sin6lat;
   double dlam;                      /* Longitude - Central Meridan */
   double NN;
   double NN_OVER_tlat;
   double MM;
   double EE;
   long Error_Code = POLY_NO_ERROR;

 //   if ((Latitude < -PI_OVER_2) || (Latitude > PI_OVER_2))
 //   { /* Latitude out of range */
 //     Error_Code |= POLY_LAT_ERROR;
 //   }
 //   if ((Longitude < -M_PI) || (Longitude > TWO_PI))
 //   { /* Longitude out of range */
 //     Error_Code |= POLY_LON_ERROR;
 //   }
   if (!Error_Code)
   { /* no errors */
     dlam = Longitude - Poly_Origin_Long;
     if (fabs(dlam) > (M_PI / 2.0))
     { /* Distortion will result if Longitude is more than 90 degrees from the Central Meridian */
       Error_Code |= POLY_LON_WARNING;
     }
 //     if (dlam > M_PI)
 //     {
 //       dlam -= TWO_PI;
 //     }
 //     if (dlam < -M_PI)
 //     {
 //       dlam += TWO_PI;
 //     }
     if (Latitude == 0.0)
     {
       *Easting = Poly_a * dlam + Poly_False_Easting;
       *Northing = -M0 + Poly_False_Northing;
     }
     else
     {
       NN = Poly_a / sqrt(1.0 - es2 * (slat * slat));
       NN_OVER_tlat = NN  / tan(Latitude);
       lat = c0 * Latitude;
       sin2lat = POLY_COEFF_TIMES_SIN(c1, 2.0, Latitude);
       sin4lat = POLY_COEFF_TIMES_SIN(c2, 4.0, Latitude);
       sin6lat = POLY_COEFF_TIMES_SIN(c3, 6.0, Latitude);
       MM = POLY_M(lat, sin2lat, sin4lat, sin6lat);
       EE = dlam * slat;
       *Easting = NN_OVER_tlat * sin(EE) + Poly_False_Easting;
       *Northing = MM - M0 + NN_OVER_tlat * (1.0 - cos(EE)) +
                   Poly_False_Northing;
     }
   }
   return (Error_Code);
 } /* END OF Convert_Geodetic_To_Polyconic */

◆ Convert_Polyconic_To_Geodetic()

long ossimPolyconicProjection::Convert_Polyconic_To_Geodetic	(	double	Easting,
		double	Northing,
		double *	Latitude,
		double *	Longitude
	)		const

private

The function Convert_Polyconic_To_Geodetic converts Polyconic projection easting and northing coordinates to geodetic (latitude and longitude) coordinates, according to the current ellipsoid and Polyconic projection coordinates. If any errors occur, the error code(s) are returned by the function, otherwise POLY_NO_ERROR is returned.

Easting : Easting (X) in meters (input) Northing : Northing (Y) in meters (input) Latitude : Latitude (phi) in radians (output) Longitude : Longitude (lambda) in radians (output)

Definition at line 393 of file ossimPolyconicProjection.cpp.

References c0, c1, c2, c3, es2, FLOAT_EQ, M0, PI_OVER_2, Poly_a, POLY_COEFF_TIMES_SIN, Poly_False_Easting, Poly_False_Northing, POLY_M, POLY_NO_ERROR, and Poly_Origin_Long.

Referenced by inverse().

 { /* BEGIN Convert_Polyconic_To_Geodetic */
 /*
  * The function Convert_Polyconic_To_Geodetic converts Polyconic projection
  * (easting and northing) coordinates to geodetic (latitude and longitude)
  * coordinates, according to the current ellipsoid and Polyconic projection
  * coordinates.  If any errors occur, the error code(s) are returned by the
  * function, otherwise POLY_NO_ERROR is returned.
  *
  *    Easting           : Easting (X) in meters                  (input)
  *    Northing          : Northing (Y) in meters                 (input)
  *    Latitude          : Latitude (phi) in radians              (output)
  *    Longitude         : Longitude (lambda) in radians          (output)
  */

   double dx;     /* Delta easting - Difference in easting (easting-FE)      */
   double dy;     /* Delta northing - Difference in northing (northing-FN)   */
   double dx_OVER_Poly_a;
   double AA;
   double BB;
   double CC = 0.0;
   double PHIn, Delta_PHI = 1.0;
   double sin_PHIn;
   double PHI, sin2PHI,sin4PHI, sin6PHI;
   double Mn, Mn_prime, Ma;
   double AA_Ma;
   double Ma2_PLUS_BB;
   double AA_MINUS_Ma;
   double tolerance = 1.0e-12;        /* approximately 1/1000th of
                                an arc second or 1/10th meter */
   long Error_Code = POLY_NO_ERROR;

 //   if ((Easting < (Poly_False_Easting + Poly_Min_Easting))
 //       || (Easting > (Poly_False_Easting + Poly_Max_Easting)))
 //   { /* Easting out of range */
 //     Error_Code |= POLY_EASTING_ERROR;
 //   }
 //   if ((Northing < (Poly_False_Northing + Poly_Min_Northing))
 //       || (Northing > (Poly_False_Northing + Poly_Max_Northing)))
 //   { /* Northing out of range */
 //     Error_Code |= POLY_NORTHING_ERROR;
 //   }
   if (!Error_Code)
   { /* no errors */
     dy = Northing - Poly_False_Northing;
     dx = Easting - Poly_False_Easting;
     dx_OVER_Poly_a = dx / Poly_a;
     if (FLOAT_EQ(dy,-M0,1))
     {
       *Latitude = 0.0;
       *Longitude = dx_OVER_Poly_a + Poly_Origin_Long;
     }
     else
     {
       AA = (M0 + dy) / Poly_a;
       BB = dx_OVER_Poly_a * dx_OVER_Poly_a + (AA * AA);
       PHIn = AA;

       while (fabs(Delta_PHI) > tolerance)
       {
         sin_PHIn = sin(PHIn);
         CC = sqrt(1.0 - es2 * sin_PHIn * sin_PHIn) * tan(PHIn);
         PHI = c0 * PHIn;
         sin2PHI = POLY_COEFF_TIMES_SIN(c1, 2.0, PHIn);
         sin4PHI = POLY_COEFF_TIMES_SIN(c2, 4.0, PHIn);
         sin6PHI = POLY_COEFF_TIMES_SIN(c3, 6.0, PHIn);
         Mn = POLY_M(PHI, sin2PHI, sin4PHI, sin6PHI);
         Mn_prime = c0 - 2.0 * c1 * cos(2.0 * PHIn) + 4.0 * c2 * cos(4.0 * PHIn) -
                    6.0 * c3 * cos(6.0 * PHIn);
         Ma = Mn / Poly_a;
         AA_Ma = AA * Ma;
         Ma2_PLUS_BB = Ma * Ma + BB;
         AA_MINUS_Ma = AA - Ma;
         Delta_PHI = (AA_Ma * CC + AA_MINUS_Ma - 0.5 * (Ma2_PLUS_BB) * CC) /
                     (es2 * sin2PHI * (Ma2_PLUS_BB - 2.0 * AA_Ma) /
                      4.0 * CC + (AA_MINUS_Ma) * (CC * Mn_prime - 2.0 / sin2PHI) - Mn_prime);
         PHIn -= Delta_PHI;
       }
       *Latitude = PHIn;

 //       if (*Latitude > PI_OVER_2)  /* force distorted values to 90, -90 degrees */
 //         *Latitude = PI_OVER_2;
 //       else if (*Latitude < -PI_OVER_2)
 //         *Latitude = -PI_OVER_2;

       if (FLOAT_EQ(fabs(*Latitude),PI_OVER_2,.00001) || (*Latitude == 0))
         *Longitude = Poly_Origin_Long;

       else
       {
         *Longitude = (asin(dx_OVER_Poly_a * CC)) / sin(*Latitude) +
                      Poly_Origin_Long;
       }
     }
 //     if (*Longitude > M_PI)
 //       *Longitude -= TWO_PI;
 //     if (*Longitude < -M_PI)
 //       *Longitude += TWO_PI;

 //     if (*Longitude > M_PI)  /* force distorted values to 180, -180 degrees */
 //       *Longitude = M_PI;
 //     else if (*Longitude < -M_PI)
 //       *Longitude = -M_PI;

   }
   return (Error_Code);
 } /* END OF Convert_Polyconic_To_Geodetic */

◆ dup()

virtual ossimObject* ossimPolyconicProjection::dup ( ) const

inlinevirtual

Implements ossimProjection.

Definition at line 28 of file ossimPolyconicProjection.h.

       {
          return new ossimPolyconicProjection(*this);
       }

◆ forward()

ossimDpt ossimPolyconicProjection::forward ( const ossimGpt & worldPoint ) const

virtual

All map projections will convert the world coordinate to an easting northing (Meters).

Implements ossimMapProjection.

Definition at line 131 of file ossimPolyconicProjection.cpp.

References ossimGpt::changeDatum(), ossimDatum::code(), Convert_Geodetic_To_Polyconic(), ossimGpt::datum(), ossimGpt::latr(), ossimGpt::lonr(), and ossimMapProjection::theDatum.

 {
    double easting  = 0.0;
    double northing = 0.0;
    ossimGpt gpt = latLon;

    if (theDatum)
    {
       if (theDatum->code() != latLon.datum()->code())
       {
          gpt.changeDatum(theDatum); // Shift to our datum.
       }
    }

    Convert_Geodetic_To_Polyconic(gpt.latr(),
                                  gpt.lonr(),
                                  &easting,
                                  &northing);

    return ossimDpt(easting, northing);
 }

◆ Get_Polyconic_Parameters()

void ossimPolyconicProjection::Get_Polyconic_Parameters	(	double *	a,
		double *	f,
		double *	Origin_Latitude,
		double *	Central_Meridian,
		double *	False_Easting,
		double *	False_Northing
	)		const

private

The function Get_Polyconic_Parameters returns the current ellipsoid parameters, and Polyconic projection parameters.

a : Semi-major axis of ellipsoid, in meters (output) f : Flattening of ellipsoid (output) Origin_Latitude : Latitude in radians at which the (output) point scale factor is 1.0 Central_Meridian : Longitude in radians at the center of (output) the projection False_Easting : A coordinate value in meters assigned to the central meridian of the projection. (output) False_Northing : A coordinate value in meters assigned to the origin latitude of the projection (output)

Definition at line 284 of file ossimPolyconicProjection.cpp.

References Poly_a, Poly_f, Poly_False_Easting, Poly_False_Northing, Poly_Origin_Lat, and Poly_Origin_Long.

 { /* BEGIN Get_Polyconic_Parameters */
 /*
  * The function Get_Polyconic_Parameters returns the current ellipsoid
  * parameters, and Polyconic projection parameters.
  *
  *    a                 : Semi-major axis of ellipsoid, in meters   (output)
  *    f                 : Flattening of ellipsoid                               (output)
  *    Origin_Latitude   : Latitude in radians at which the          (output)
  *                          point scale factor is 1.0
  *    Central_Meridian  : Longitude in radians at the center of     (output)
  *                          the projection
  *    False_Easting     : A coordinate value in meters assigned to the
  *                          central meridian of the projection.     (output)
  *    False_Northing    : A coordinate value in meters assigned to the
  *                          origin latitude of the projection       (output)
  */

   *a = Poly_a;
   *f = Poly_f;
   *Origin_Latitude = Poly_Origin_Lat;
   *Central_Meridian = Poly_Origin_Long;
   *False_Easting = Poly_False_Easting;
   *False_Northing = Poly_False_Northing;

   return;
 } /* END OF Get_Polyconic_Parameters */

◆ getFalseEasting()

double ossimPolyconicProjection::getFalseEasting ( ) const

inlinevirtual

Returns: The false easting.

Reimplemented from ossimMapProjection.

Definition at line 58 of file ossimPolyconicProjection.h.

58 {return Poly_False_Easting;}

ossimPolyconicProjection::Poly_False_Easting

double Poly_False_Easting

Definition: ossimPolyconicProjection.h:91

◆ getFalseNorthing()

double ossimPolyconicProjection::getFalseNorthing ( ) const

inlinevirtual

Returns: The false northing.

Reimplemented from ossimMapProjection.

Definition at line 59 of file ossimPolyconicProjection.h.

59 {return Poly_False_Northing;}

ossimPolyconicProjection::Poly_False_Northing

double Poly_False_Northing

Definition: ossimPolyconicProjection.h:90

◆ inverse()

ossimGpt ossimPolyconicProjection::inverse ( const ossimDpt & projectedPoint ) const

virtual

Will take a point in meters and convert it to ground.

Implements ossimMapProjection.

Definition at line 118 of file ossimPolyconicProjection.cpp.

References Convert_Polyconic_To_Geodetic(), DEG_PER_RAD, ossimMapProjection::theDatum, ossimDpt::x, and ossimDpt::y.

 {
    double lat = 0.0;
    double lon = 0.0;

    Convert_Polyconic_To_Geodetic(eastingNorthing.x,
                                  eastingNorthing.y,
                                  &lat,
                                  &lon);

    return ossimGpt(lat*DEG_PER_RAD, lon*DEG_PER_RAD, 0.0, theDatum);
 }

◆ loadState()

bool ossimPolyconicProjection::loadState	(	const ossimKeywordlist &	kwl,
		const char *	prefix = `0`
	)

virtual

Method to the load (recreate) the state of an object from a keyword list. Return true if ok or false on error.

Reimplemented from ossimMapProjection.

Definition at line 158 of file ossimPolyconicProjection.cpp.

References ossimKeywordlist::find(), ossimMapProjection::loadState(), Poly_False_Easting, Poly_False_Northing, setDefaults(), STATIC_TYPE_NAME, ossimMapProjection::theFalseEastingNorthing, ossimKeywordNames::TYPE_KW, update(), ossimDpt::x, and ossimDpt::y.

 {
    bool flag = ossimMapProjection::loadState(kwl, prefix);
    const char* type          = kwl.find(prefix, ossimKeywordNames::TYPE_KW);

    setDefaults();

    if(ossimString(type) == STATIC_TYPE_NAME(ossimPolyconicProjection))
    {
       Poly_False_Easting  = theFalseEastingNorthing.x;
       Poly_False_Northing = theFalseEastingNorthing.y;
    }

    update();

    return flag;
 }

◆ saveState()

bool ossimPolyconicProjection::saveState	(	ossimKeywordlist &	kwl,
		const char *	prefix = `0`
	)		const

virtual

Method to save the state of an object to a keyword list. Return true if ok or false on error.

Reimplemented from ossimMapProjection.

Definition at line 153 of file ossimPolyconicProjection.cpp.

References ossimMapProjection::saveState().

 {
    return ossimMapProjection::saveState(kwl, prefix);
 }

◆ Set_Polyconic_Parameters()

long ossimPolyconicProjection::Set_Polyconic_Parameters	(	double	a,
		double	f,
		double	Origin_Latitude,
		double	Central_Meridian,
		double	False_Easting,
		double	False_Northing
	)

private

The function Set_Polyconic_Parameters receives the ellipsoid parameters and Polyconic projcetion parameters as inputs, and sets the corresponding state variables.If any errors occur, the error code(s) are returned by the function, otherwise POLY_NO_ERROR is returned.

a : Semi-major axis of ellipsoid, in meters (input) f : Flattening of ellipsoid (input) Origin_Latitude : Latitude in radians at which the (input) point scale factor is 1.0 Central_Meridian : Longitude in radians at the center of (input) the projection False_Easting : A coordinate value in meters assigned to the central meridian of the projection. (input) False_Northing : A coordinate value in meters assigned to the origin latitude of the projection (input)

Definition at line 183 of file ossimPolyconicProjection.cpp.

References c0, c1, c2, c3, Convert_Geodetic_To_Polyconic(), es2, es4, es6, FOURTY_ONE, M0, M_PI, Poly_a, POLY_COEFF_TIMES_SIN, Poly_f, Poly_False_Easting, Poly_False_Northing, POLY_M, Poly_Max_Easting, Poly_Max_Northing, Poly_Min_Easting, Poly_Min_Northing, POLY_NO_ERROR, Poly_Origin_Lat, and Poly_Origin_Long.

Referenced by update().

 { /* BEGIN Set_Polyconic_Parameters */
 /*
  * The function Set_Polyconic_Parameters receives the ellipsoid parameters and
  * Polyconic projection parameters as inputs, and sets the corresponding state
  * variables.  If any errors occur, the error code(s) are returned by the function,
  * otherwise POLY_NO_ERROR is returned.
  *
  *    a                 : Semi-major axis of ellipsoid, in meters   (input)
  *    f                 : Flattening of ellipsoid                               (input)
  *    Origin_Latitude   : Latitude in radians at which the          (input)
  *                          point scale factor is 1.0
  *    Central_Meridian  : Longitude in radians at the center of     (input)
  *                          the projection
  *    False_Easting     : A coordinate value in meters assigned to the
  *                          central meridian of the projection.     (input)
  *    False_Northing    : A coordinate value in meters assigned to the
  *                          origin latitude of the projection       (input)
  */

   double j, three_es4;
   double lat, sin2lat, sin4lat, sin6lat;
   double temp;
 //  double inv_f = 1 / f;
   long Error_Code = POLY_NO_ERROR;

 //   if (a <= 0.0)
 //   { /* Semi-major axis must be greater than zero */
 //     Error_Code |= POLY_A_ERROR;
 //   }
 //   if ((inv_f < 250) || (inv_f > 350))
 //   { /* Inverse flattening must be between 250 and 350 */
 //     Error_Code |= POLY_INV_F_ERROR;
 //   }
 //   if ((Origin_Latitude < -PI_OVER_2) || (Origin_Latitude > PI_OVER_2))
 //   { /* origin latitude out of range */
 //     Error_Code |= POLY_ORIGIN_LAT_ERROR;
 //   }
 //   if ((Central_Meridian < -M_PI) || (Central_Meridian > TWO_PI))
 //   { /* origin longitude out of range */
 //     Error_Code |= POLY_CENT_MER_ERROR;
 //   }
   if (!Error_Code)
   { /* no errors */
     Poly_a = a;
     Poly_f = f;
     Poly_Origin_Lat = Origin_Latitude;
 //     if (Central_Meridian > M_PI)
 //       Central_Meridian -= TWO_PI;
     Poly_Origin_Long = Central_Meridian;
     Poly_False_Northing = False_Northing;
     Poly_False_Easting = False_Easting;
     es2 = 2 * Poly_f - Poly_f * Poly_f;
     es4 = es2 * es2;
     es6 = es4 * es2;

     j = 45.0 * es6 / 1024.0;
     three_es4 = 3.0 * es4;
     c0 = 1.0 - es2 / 4.0 - three_es4 / 64.0 - 5.0 * es6 / 256.0;
     c1 = 3.0 * es2 / 8.0 + three_es4 / 32.0 + j;
     c2 = 15.0 * es4 / 256.0 + j;
     c3 = 35.0 * es6 / 3072.0;

     lat = c0 * Poly_Origin_Lat;
     sin2lat = POLY_COEFF_TIMES_SIN(c1, 2.0, Poly_Origin_Lat);
     sin4lat = POLY_COEFF_TIMES_SIN(c2, 4.0, Poly_Origin_Lat);
     sin6lat = POLY_COEFF_TIMES_SIN(c3, 6.0, Poly_Origin_Lat);
     M0 = POLY_M(lat, sin2lat, sin4lat, sin6lat);

     if (Poly_Origin_Long > 0)
     {
       Convert_Geodetic_To_Polyconic(FOURTY_ONE, Poly_Origin_Long - M_PI, &temp, &Poly_Max_Northing);
       Convert_Geodetic_To_Polyconic(-FOURTY_ONE, Poly_Origin_Long - M_PI, &temp, &Poly_Min_Northing);
       Poly_Max_Easting = 19926189.0;
       Poly_Min_Easting = -20037509.0;
     }
     else if (Poly_Origin_Long < 0)
     {
       Convert_Geodetic_To_Polyconic(FOURTY_ONE, Poly_Origin_Long + M_PI, &temp, &Poly_Max_Northing);
       Convert_Geodetic_To_Polyconic(-FOURTY_ONE, Poly_Origin_Long + M_PI, &temp, &Poly_Min_Northing);
       Poly_Max_Easting = 20037509.0;
       Poly_Min_Easting = -19926189.0;
     }
     else
     {
       Convert_Geodetic_To_Polyconic(FOURTY_ONE, M_PI, &temp, &Poly_Max_Northing);
       Convert_Geodetic_To_Polyconic(-FOURTY_ONE, M_PI, &temp, &Poly_Min_Northing);
       Poly_Max_Easting = 20037509.0;
       Poly_Min_Easting = -20037509.0;
     }

   } /* END OF if(!Error_Code) */
   return (Error_Code);
 } /* END OF Set_Polyconic_Parameters */

◆ setDefaults()

void ossimPolyconicProjection::setDefaults ( )

Definition at line 99 of file ossimPolyconicProjection.cpp.

References Poly_False_Easting, Poly_False_Northing, Poly_Max_Easting, Poly_Max_Northing, Poly_Min_Easting, and Poly_Min_Northing.

Referenced by loadState(), and ossimPolyconicProjection().

 {
    Poly_False_Easting  = 0.0;
    Poly_False_Northing = 0.0;
    Poly_Max_Easting    = 20037509.0;
    Poly_Max_Northing   = 15348215.0;
    Poly_Min_Easting    = -20037509.0;
    Poly_Min_Northing   = -15348215.0;
 }

◆ setFalseEasting()

void ossimPolyconicProjection::setFalseEasting ( double falseEasting )

SetFalseEasting. The value is in meters. Update is then called so we can pre-compute paramters

Definition at line 85 of file ossimPolyconicProjection.cpp.

References Poly_False_Easting, and update().

 {
    Poly_False_Easting = falseEasting;

    update();
 }

◆ setFalseEastingNorthing()

void ossimPolyconicProjection::setFalseEastingNorthing	(	double	falseEasting,
		double	falseNorthing
	)

Sets both false easting and northing values. The values are expected to be in meters. Update is then called so we can pre-compute paramters

Definition at line 109 of file ossimPolyconicProjection.cpp.

References Poly_False_Easting, Poly_False_Northing, and update().

 {
    Poly_False_Easting  = falseEasting;
    Poly_False_Northing = falseNorthing;

    update();
 }

◆ setFalseNorthing()

void ossimPolyconicProjection::setFalseNorthing ( double falseNorthing )

SetFalseNorthing. The value is in meters. Update is then called so we can pre-compute paramters

Definition at line 92 of file ossimPolyconicProjection.cpp.

References Poly_False_Northing, and update().

 {
    Poly_False_Northing = falseNorthing;

    update();
 }

◆ update()

void ossimPolyconicProjection::update ( )

virtual

Reimplemented from ossimMapProjection.

Definition at line 70 of file ossimPolyconicProjection.cpp.

References ossimEllipsoid::getA(), ossimEllipsoid::getFlattening(), ossimGpt::latr(), ossimGpt::lonr(), Poly_False_Easting, Poly_False_Northing, Set_Polyconic_Parameters(), ossimMapProjection::theEllipsoid, ossimMapProjection::theFalseEastingNorthing, ossimMapProjection::theOrigin, ossimMapProjection::update(), ossimDpt::x, and ossimDpt::y.

Referenced by loadState(), ossimPolyconicProjection(), setFalseEasting(), setFalseEastingNorthing(), and setFalseNorthing().

 {
    Set_Polyconic_Parameters(theEllipsoid.getA(),
                             theEllipsoid.getFlattening(),
                             theOrigin.latr(),
                             theOrigin.lonr(),
                             Poly_False_Easting,
                             Poly_False_Northing);

    theFalseEastingNorthing.x = Poly_False_Easting;
    theFalseEastingNorthing.y = Poly_False_Northing;

    ossimMapProjection::update();
 }
